If you had all the Crickets, Scratches, and Legos in the world, what would you make?

The class is starting to gear up and think about what we'll build for final projects. Here are the ideas I had, building up to my favorite:
When approaching this, I found that I think about a visual aspect or some sort of interactive thing and then think about what things we've learned would let me build it.
1) What about a squirrel? The kids would come up to the table, put an acorn shaped thing on a plate (with a resistance sensor attached), which would trigger the squirrel (built on a Cricket) to come over, pick up the acorn, and take it someplace else. But if you pulled the squirrel's tail, it would hiss at you and run away to protect its acorns. And if it was 'cold' (you blew on the squirrel), the squirrel would go to its acorns and wrap its tail around itself to prepare for winter.
2) I also thought about making a bee, or multiple bees. The bee would be buzzing over a big tablecloth of flowers, stopping only on specific colors of flowers and doing some bee thing. You could have multiple bees and going to flowers and returning to their hive. And if you swatted a bee or touched it (blocking a light sensor), it would buzz and 'sting' you (squirt of water). And if you clapped or made a loud noise, all the bees would swarm and return to their hive.
3) And finally, I could build a scene from 'Up.' If you haven't seen the movie, immediately go to Netflix and watch it. This is my idea for it summarized in a drawing:

Basically, the figurines are on a cricket that rolls around, and maybe connects to the separate figurines so they move;  it is controlled by another cricket that has buttons that tells the other cricket to move. The house will be a mostly empty box with aluminum foil covering it; it the alligator clips will connect down to the cricket, which will be on the lookout for contact with the aluminum coated obstacles. If the aluminum on the house touches the aluminum on the obstacles, a noise (and maybe motion) will activate. The point is to drive past all the obstacles. At the end, by the waterfall, another robot will sense the arrival of the cricket and will give out an Ellie badge.

Later,
Lucia

SciBorg finally does challenge 6

The sixth, and forgotten, challenge in the Robot Design Studio class had to do with working with switches and differentiating between edge and level triggered responses. That is, making the robot react as long as a button pressed or only the moment it is pressed. The challenge added another layer by having to control two motors and switches.
The first part was to make motor a (and b) be on when switch one is pressed and off otherwise (this would be level triggered--if the robot senses it's on the 'pressed' or 'not pressed' level, and it reacts). Above is my functioning program.
Here's some proof if you don't believe me.

The second part was to make motor a reverse when switch one is pressed, and likewise for b. The tricky part of this was that the robot has to look for responses from both motors at the same time, and the motor has to remember if it's been pressed or not. Lots of help from P-Berg helped me make a program where the robot reads the sensor and notes if it was pressed before and if it's being pressed now.
The great part about this 'remembering' thing is that it allows the robot to pay attention to both motors in one program. Otherwise, you would need to have to separate programs and instruct the robot to look at them at the same time.

And it worked marvelously!!!

Ready, Set, Build!

Last week was all about learning to build with Lego's--making something strong and learning how motion can be controlled.

The first challenge (which I missed and turned in late due to a little bug called STREPP) was to build a box out of Legos that can fall 3 meters with Lego weights inside it and not totally fall apart.
The idea behind this is linking special Legos that have holes in the middle of them with little plastic bolts. The trick is the spacing of the Legos--you have to make sure everything is perfectly aligned so the bolts will link well.
Most people did this by creating a standard box, or a doubly layered box, out of Legos and reinforcing the outside by placing one long piece perpendicular to the rest and linking it to the box with bolts. I did this and built the 'Bumble Bee!'
The Bumble Bee's strength comes from mostly bolts that hold three Lego pieces and three long plastic sticks that cross the box.

This is one of my two failed tries:

And this was final, successful try!

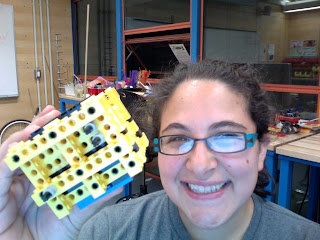

And this is a picture of me with my strong Bumble Bee.

The second challenge involved gears and simple motors. We learned about torque (the ease of moving something in a circle) and speed, and how gearing influences this.
So--there are two kinds of gears we use. A teeny one, with a multiplication value of 1x, a larger one with a value of 3x, and an extra large one with the value of 5x. As we link these up, their values multiply up. As more are linked, the torque increases and the speed decreases--because it takes more spins to turn the last wheel as more wheels are added. This makes the machine slower, but it makes it stronger and stall less.
The real challenge was to make a derby racing car that could cross 3m with a 1 kg weight as quickly as possible. So we need to find the perfect balance between torque and speed, a great lesson in engineering. Do Camille (new partner!) and I want to make a dependable car, or a car that drives in bursts?
Our first car had a gear total of 45, and crossed 3m in 14 seconds. By the end of class, we had a gear total of 15 and 3m under 9 seconds. This is a picture of me and Sweeney Todd (because he will be the violent death of the other cars, or me if he won't work). I will soon make him redder, do not fear.

To be continued and updated as we learn more.
Later, y'all!
-Lucia
